Antenna's  Setup



HF antennas system is avaible 21 meters (90 Ft.) with 5 meters (12 Ft.) mast:

  • Hy-Gain Discoverer 3 elements beam for 40 meters

  • SteppIR 4 elements for 6 to 20 meters

  • Pro-Sistel 2 elements for 30 meters

  • n.5 sloping dipole switching for 80 meters

  • Inverted V 1/2 wave for top band hangs off on top of the tower

  • RX Loop Magnetic antenna for 80-160 meters on the top of the mast

The tower, medium size (80x80cm.at the base), is self supporting in three sections nested inside one another, with legs that are into the cement base.

The mast, build in two sections is also insted inside, and allows maintenance to the SteppIR in upper side, without disassemble the 40 meters beam.

A Pro-Sistel's rotor PST61D turn it all (so far).

VHF antennas system

  • Hy-Gain 6 elements beam for 6 meters

  • Verticals bibands VHF/UHF

The system for VHF in on the roof of the house up on Pro-Systel's telescopic pole forklift up 9 meters plus 3 meters mast and rotator Pro-Sistel PST2051

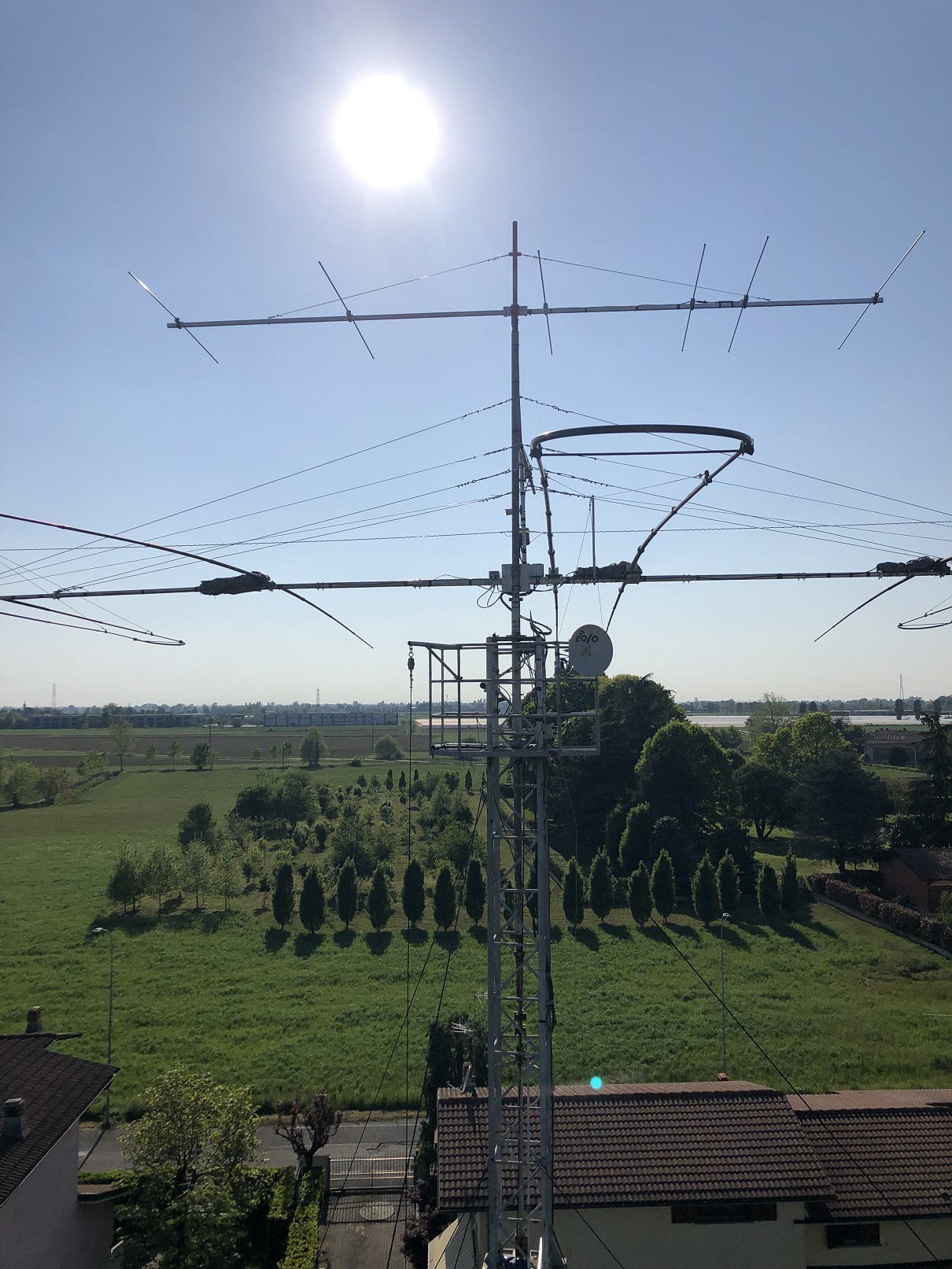

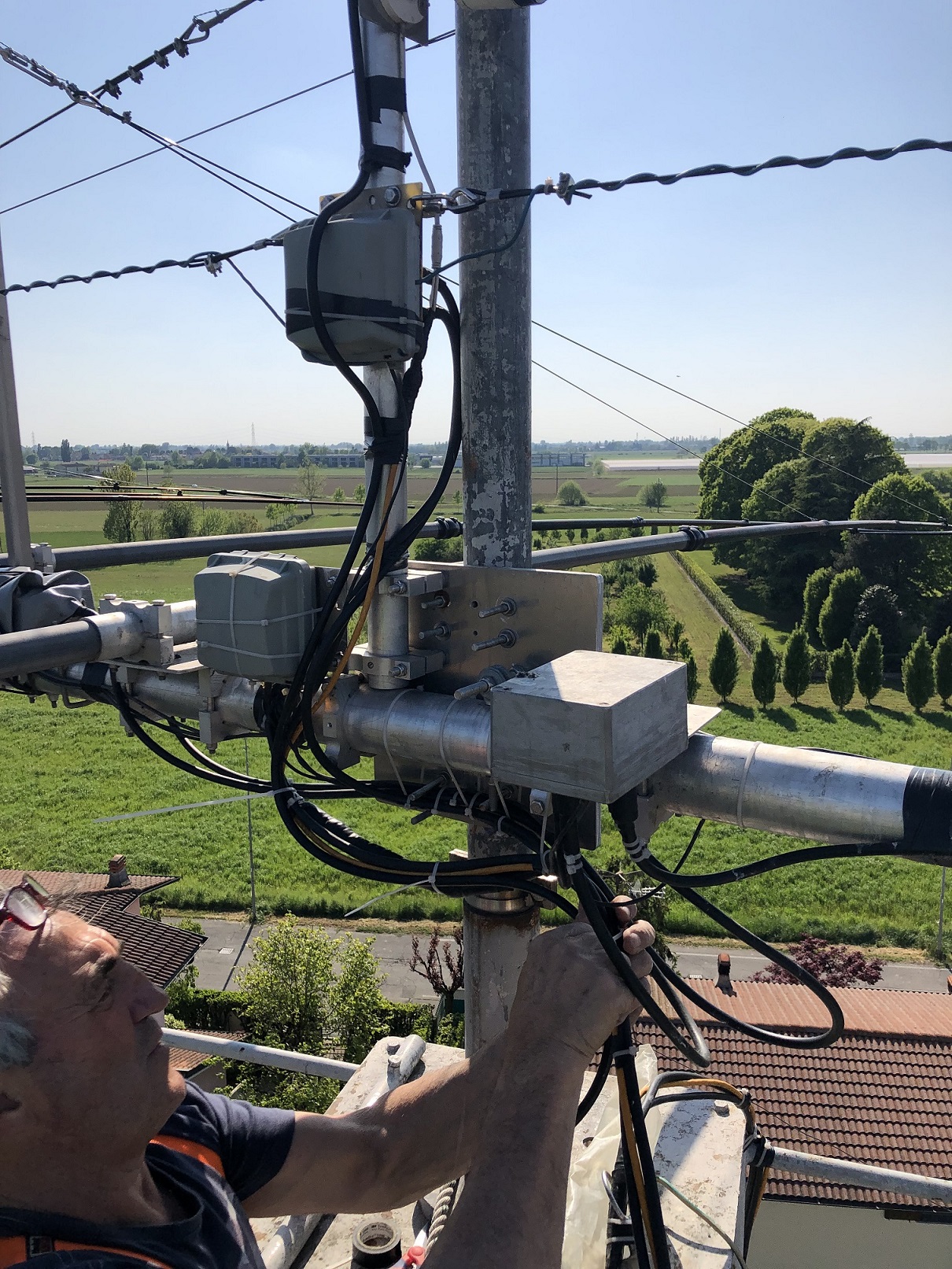

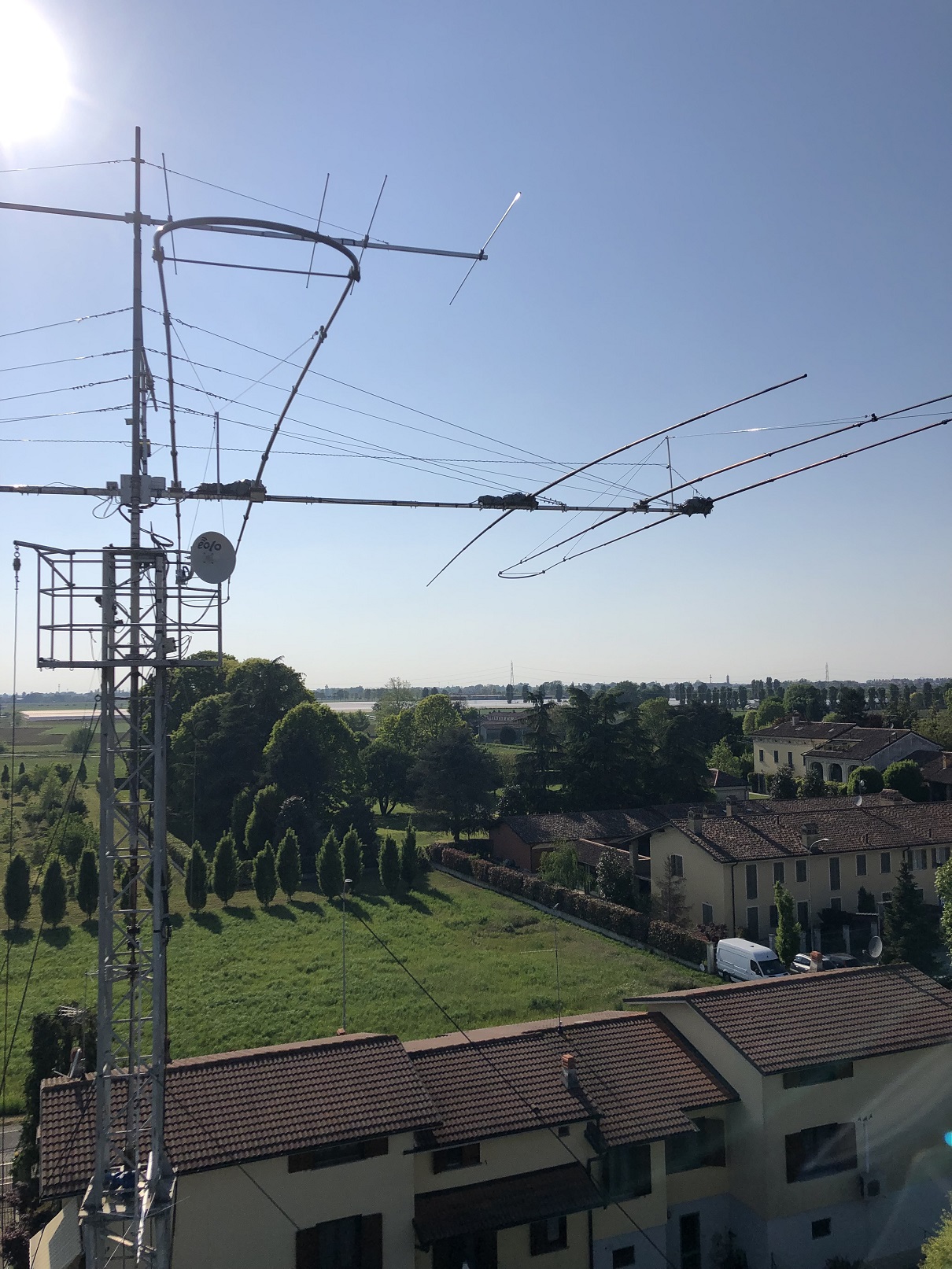

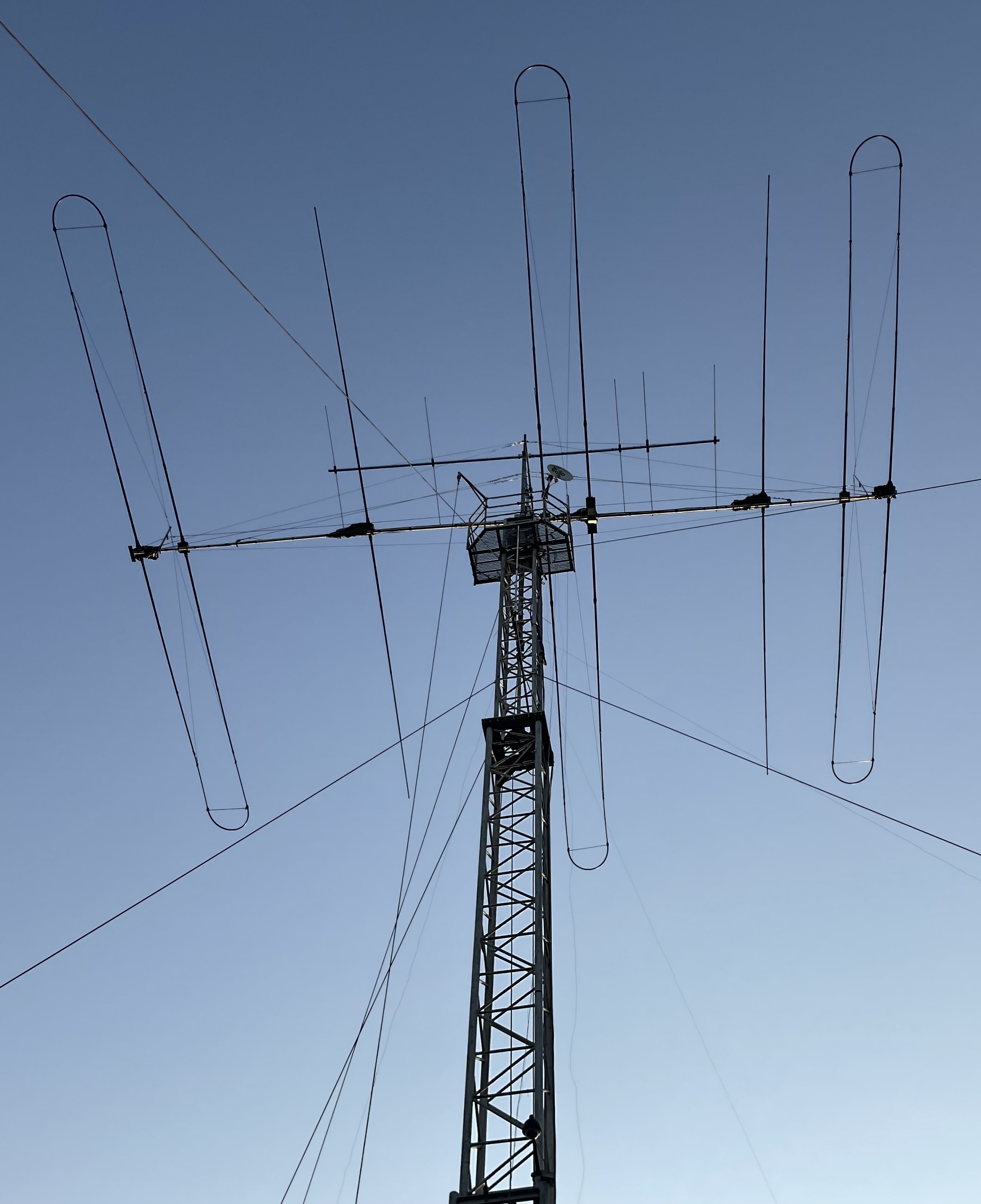

 PHOTO GALLERY



SteppIR copy hy gain





Antenna5 Antenna2 Antenna4



 Antenna6  Antenna1  Antenna3
